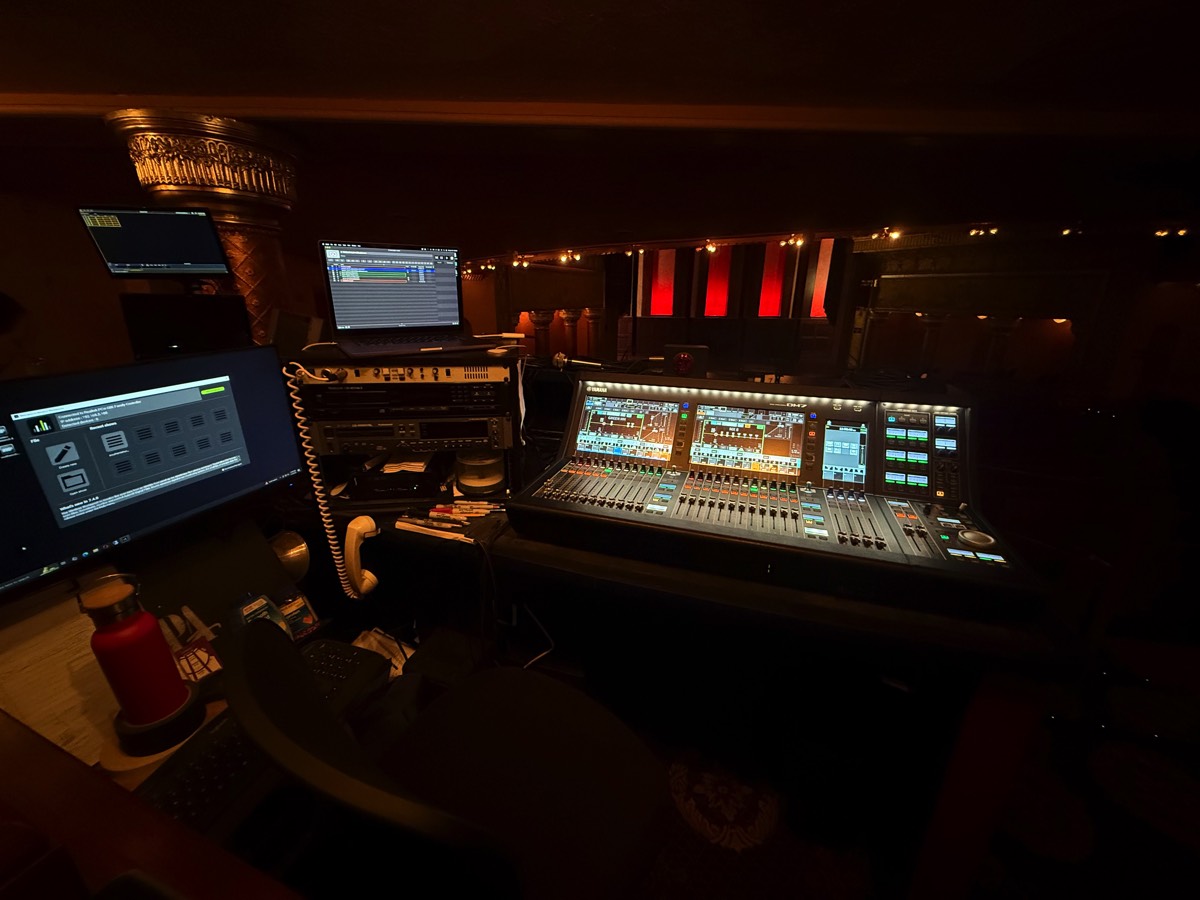

Road Console
Located at rear of house near in row S. (16 foot away from rear wall)
Requires seats to be removed.
Tie into house system via XLR connections, AES connections, or DANTE
Guest engineer tie in located DSL with input for Main L and R, Subwoofer, and Fills/Delays. House system runs at 96 so analog tie ins are usually easiest to facilitate
Located at rear of house near in row S. (16 foot away from rear wall)
Requires seats to be removed.
Tie into house system via XLR connections, AES connections, or DANTE
Guest engineer tie in located DSL with input for Main L and R, Subwoofer, and Fills/Delays. House system runs at 96 so analog tie ins are usually easiest to facilitate
Quantity FOH Cabinets
4 Meyer CQ's Main
3 EAW JF100 2nd Balcony
2 EAW JF100 Mid Stage Wash
2 EAX 18 Subs
2 EVX150DS Subs
9 Meyer MM-4 Front Fill
4 EAW MK2164 Down Fills
12 Meyer MM-4 Under Balcony Delays
Quantity FOH Console
1 Yamaha DM7 FOH Console
Quantity Playback
1 Tascam CD-401 CD Player with remote
1 Qlab full system MacBook Pro
Quantity Wired Microphones
4 SHURE SM-81-LC
6 SHURE SM-57-LC
1 SHURE BETA 52
1 SHURE BETA 58
10 SHURE SM-58-LC
2 SHURE 565SD-LC
6 Sennheiser MD-421
4 EV ND-408/
1 CROWN PZM-30D
5 CROWN PCC 160
2 RADIAL PASSIVE DI
2 PCDI stereo DI
6 KT active DI
4 AKG 535
2 AKG 414
1 BARCUS BERRY 4000
8 AT 4040
4 AT SE 3000
3 ShureBeta 98
8 Neuman KM184
4 Heil Pro 35
2 Heil Pro 30
1 Heil Pro 48
3 Sennheiser 604
1 Earthworks Piano Mic System
1 DPA 4099 Piano setup
2 AKG c519 clip on mic
1 EV RE-20
2 Royer 121 ribbon mics
Quantity Wireless Microphones
6 Shure Axient Wireless Microphone w/bodypack or handheld transmitters
87 heads standard, 4 x 58 and 4 x KSM9 heads available
19 Countryman E6 or B6, B3, or Sennheiser MK2 for wireless units
4 Meyer CQ's Main
3 EAW JF100 2nd Balcony
2 EAW JF100 Mid Stage Wash
2 EAX 18 Subs
2 EVX150DS Subs
9 Meyer MM-4 Front Fill
4 EAW MK2164 Down Fills
12 Meyer MM-4 Under Balcony Delays
Quantity FOH Console
1 Yamaha DM7 FOH Console
Quantity Playback
1 Tascam CD-401 CD Player with remote
1 Qlab full system MacBook Pro
Quantity Wired Microphones
4 SHURE SM-81-LC
6 SHURE SM-57-LC
1 SHURE BETA 52
1 SHURE BETA 58
10 SHURE SM-58-LC
2 SHURE 565SD-LC
6 Sennheiser MD-421
4 EV ND-408/
1 CROWN PZM-30D
5 CROWN PCC 160
2 RADIAL PASSIVE DI
2 PCDI stereo DI
6 KT active DI
4 AKG 535
2 AKG 414
1 BARCUS BERRY 4000
8 AT 4040
4 AT SE 3000
3 ShureBeta 98
8 Neuman KM184
4 Heil Pro 35
2 Heil Pro 30
1 Heil Pro 48
3 Sennheiser 604
1 Earthworks Piano Mic System
1 DPA 4099 Piano setup
2 AKG c519 clip on mic
1 EV RE-20
2 Royer 121 ribbon mics
Quantity Wireless Microphones
6 Shure Axient Wireless Microphone w/bodypack or handheld transmitters
87 heads standard, 4 x 58 and 4 x KSM9 heads available
19 Countryman E6 or B6, B3, or Sennheiser MK2 for wireless units
Quantity Stage Monitor Speakers (permanent house equipment)
8 EV X12 bi-amp wedges (house has 6 mixes with these ready)
3 Mackie SRM150 Powered Monitor
2 EAW JF100 permanent overhead stage wash monitors
Quantity CAPA Monitor System (available in addition to house gear listed)
1 Yamaha M7CL Console 48 ch (for use with the Monitor system)
10 EV X12 10 wedges and amps for 10 mixes available in Monitor system
8 Sennheiser G3 IEM package - 8 channels of IEM
Quantity Accessories
4 Tripod stand with boom
2 Table mic stands
6 Short, Tripod Base Mic Stands with Booms
4 Short, Round Base Mic Stands with Booms
4 Tall, Tripod Base Mic Stands with Booms
8 Tall, Round Base, Straight Mic Stand with Booms
1 Tall, Round Base, Straight Mic Stand
2 Tall, Heavy Round Base, Straight Mic Stand with Boom
2 Tall, Heavy Triangle Base, Straight Mic Stand with Boom
1 "Listen" Assisted Listening System
1 Listen Everywhere wifi listening system
Tascam SD recorder
Nuendo, USB drive, and CDR recording
Quantity Intercom
1 2 Channel Clear-Com System
10 Clear-Com Single Channel Belt Packs
2 Clear-com Dual Channel Belt Packs
6 Clear-Com Single Muff Headsets
6 Clear-Com Double Muff Headsets
4 RME wireless 2 channel packs
1 Cue Light System with 8 light locations
8 EV X12 bi-amp wedges (house has 6 mixes with these ready)
3 Mackie SRM150 Powered Monitor
2 EAW JF100 permanent overhead stage wash monitors
Quantity CAPA Monitor System (available in addition to house gear listed)
1 Yamaha M7CL Console 48 ch (for use with the Monitor system)
10 EV X12 10 wedges and amps for 10 mixes available in Monitor system
8 Sennheiser G3 IEM package - 8 channels of IEM
Quantity Accessories
4 Tripod stand with boom
2 Table mic stands
6 Short, Tripod Base Mic Stands with Booms
4 Short, Round Base Mic Stands with Booms
4 Tall, Tripod Base Mic Stands with Booms
8 Tall, Round Base, Straight Mic Stand with Booms
1 Tall, Round Base, Straight Mic Stand
2 Tall, Heavy Round Base, Straight Mic Stand with Boom
2 Tall, Heavy Triangle Base, Straight Mic Stand with Boom
1 "Listen" Assisted Listening System
1 Listen Everywhere wifi listening system
Tascam SD recorder
Nuendo, USB drive, and CDR recording
Quantity Intercom
1 2 Channel Clear-Com System
10 Clear-Com Single Channel Belt Packs
2 Clear-com Dual Channel Belt Packs
6 Clear-Com Single Muff Headsets
6 Clear-Com Double Muff Headsets
4 RME wireless 2 channel packs
1 Cue Light System with 8 light locations
